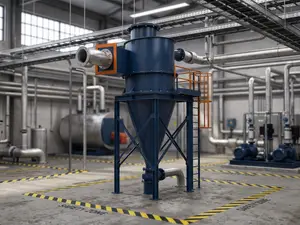

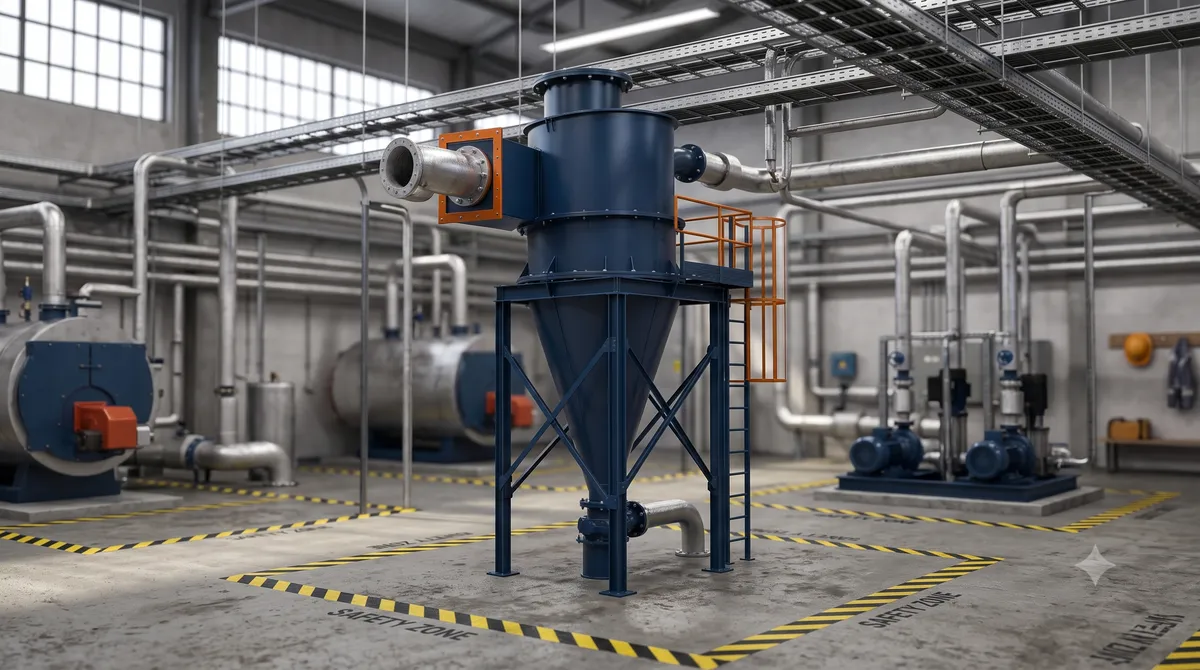

Cyclone Separators

We engineer and supply Cyclone Separators as part of complete industrial heating and utility solutions. Share your capacity, fuel type, application, and site details — our team will recommend a suitable configuration and quote.

About Cyclone Separators

Gyantosh's Cyclone Separators are engineered to provide efficient and economical removal of coarse and medium-sized particulate matter from industrial exhaust gases. Utilizing the principle of centrifugal separation, these systems effectively remove dust, ash, and solid particles from flue gas streams before they are released into the atmosphere or passed through secondary pollution control equipment.

Designed with precision-engineered vortex chambers and optimized gas flow paths, our Cyclone Separators offer reliable dust separation with minimal pressure loss and low operating costs. Their simple yet highly effective design makes them an ideal solution for industries seeking robust particulate removal without the need for complex filtration systems or high maintenance requirements.

The operating principle is based on centrifugal force. Dust-laden gases enter the cyclone tangentially at high velocity, creating a powerful spiral vortex inside the separator. As the gas rotates, heavier dust particles experience centrifugal force that propels them toward the cyclone walls. These particles gradually lose momentum, slide downward under gravity, and are collected in the dust hopper below, while the cleaned gas changes direction and exits through the central outlet at the top.

Our Cyclone Separators are particularly effective in handling high dust loading applications involving fly ash, coal dust, biomass ash, sawdust, wood dust, grain dust, and other coarse particulate matter. They are commonly installed as standalone dust collection systems or as pre-cleaners ahead of Bag Filters or Electrostatic Precipitators, significantly reducing particulate loading on downstream filtration equipment and extending its operational life.

Manufactured using heavy-duty steel construction and precision-fabricated internal components, every Cyclone Separator is designed for long service life, dependable operation, and continuous industrial performance. With no moving internal parts, the system offers exceptional reliability, reduced maintenance requirements, and lower lifecycle operating costs.

Our Cyclone Separators are suitable for a wide range of industrial heating and process applications including steam boilers, thermic fluid heaters, hot air generators, furnaces, dryers, material handling systems, woodworking plants, grain processing facilities, and biomass combustion systems.

Suitable for heating systems up to 100 Lakh kcal/hr, Gyantosh's Cyclone Separators provide industries with an economical, durable, and energy-efficient solution for primary dust collection and air pollution control.

Key Features

High-efficiency removal of coarse and medium-sized particulate matter
Optimized centrifugal separation technology
Heavy-duty steel construction for long operational life
Low pressure drop resulting in reduced energy consumption
No moving internal components for maximum reliability
Continuous operation with minimal maintenance
High-temperature resistant construction
Compact and space-efficient design
Hopper-based dust collection for easy disposal
Suitable for high dust loading applications
Can be installed as a primary dust collector or pre-cleaner
Reduced wear on downstream pollution control equipment
Custom-designed to suit gas flow and dust characteristics
Manufactured in accordance with applicable industrial standards
Suitable for indoor and outdoor installation

Cyclone Separators Specification

Suitable For

Industrial heating systems up to 100 Lakh kcal/hr

Particulate Range

Coarse and medium-sized particulate matter

Operating Temperature

Up to 250°C standard; higher with customized refractory lining

Separation Principle

Centrifugal (vortex) separation

Configuration

Single Cyclone / Multi Cyclone

Moving Parts

None — no internal moving components

Dust Discharge

Rotary Airlock Valve / Screw Conveyor

Construction

Heavy-duty steel

Dust & Particulate Types Handled

Fly AshCoal DustBiomass AshSawdustWood DustRice Husk AshGrain DustSand ParticlesMineral DustMetal Grinding DustProcess DustCoarse Combustion Residues

Suitable For

Industrial heating systems up to 100 Lakh kcal/hr

Custom capacities available on request

Operating Temperature

Up to 250°C (Standard Design)Higher with Customized Refractory Lining

Higher values available for specialized applications

Separation Technology

Single Cyclone Separator

Designed for moderate dust loading applications, providing efficient removal of coarse particulate matter with a compact footprint and simple installation.

Multi Cyclone Separator

Multiple small-diameter cyclones operate in parallel to achieve higher collection efficiency, making them suitable for boilers and industrial heating systems with increased flue gas volumes.

High-Efficiency Vortex Design

The specially engineered cyclone geometry generates a strong centrifugal vortex, improving dust separation while maintaining low pressure losses.

Hopper Dust Collection System

Separated dust is continuously collected in a hopper equipped with rotary airlocks or screw conveyors for efficient handling and disposal.

Optimized Gas Flow Path

Carefully designed inlet and outlet configurations minimize turbulence, improve separation efficiency, and ensure consistent performance under varying operating conditions.

Applications

Steam BoilersThermic Fluid HeatersHot Air GeneratorsIndustrial FurnacesBiomass Combustion SystemsGrain DryersMaterial Handling SystemsWoodworking PlantsSaw MillsCement HandlingMineral ProcessingDust Collection Systems

Industries Served

Boiler & Heating PlantsFood Processing IndustryRice MillsAgro Processing IndustryWood Processing IndustryPaper & Pulp IndustryChemical IndustryCement IndustryFoundriesSteel IndustryTextile IndustryMining & Mineral ProcessingEngineering & Manufacturing UnitsBiomass Power PlantsRenewable Energy Projects

Advantages

Efficient Primary Dust Collection

Cyclone Separators effectively remove large and medium-sized particulate matter before the exhaust gas reaches secondary filtration equipment.

Low Operating Cost

With no filter bags, electrical components, or moving internal parts, cyclone separators offer exceptionally low operating and maintenance costs.

Low Pressure Drop

The optimized airflow design minimizes resistance, reducing fan power consumption and improving overall system efficiency.

High Reliability

The simple mechanical construction ensures dependable operation under demanding industrial conditions with minimal downtime.

Excellent Pre-Cleaner for Secondary Equipment

Cyclone Separators significantly reduce dust loading on Bag Filters and Electrostatic Precipitators, extending filter life and improving overall pollution control efficiency.

High Temperature Capability

Suitable for handling hot flue gases from boilers, furnaces, and other industrial combustion equipment without compromising performance.

Easy Maintenance

The robust design and absence of internal moving parts simplify inspection, cleaning, and routine maintenance while reducing operational interruptions.

Optional Accessories

Multi Cyclone Assembly

Rotary Airlock Valve

Screw Conveyor

Dust Collection Hopper

Inspection Doors

Access Platforms & Ladders

Expansion Joints

Chimney

ID Fan

Ducting System

Differential Pressure Gauge

PLC-Based Monitoring System

Instrumentation & Safety Controls

Frequently Asked Questions(10)

What size particulate matter can a Cyclone Separator remove?

Cyclone Separators are most effective for coarse and medium-sized particulate matter such as fly ash, coal dust, sawdust, wood dust, and grain dust. Very fine particulates typically require a downstream Bag Filter or ESP for complete removal.

Can a Cyclone Separator be used as a standalone dust collection system?

Yes — for applications with predominantly coarse dust, a Cyclone Separator can serve as a standalone dust collection system. For applications with fine particulate matter or stringent emission limits, it is commonly used as a pre-cleaner ahead of a Bag Filter or ESP.

What is the difference between Single and Multi Cyclone Separators?

A Single Cyclone Separator suits moderate dust loading with a compact footprint. A Multi Cyclone Separator uses multiple small-diameter cyclones in parallel to achieve higher collection efficiency, suited to boilers and heating systems with larger flue gas volumes.

What size heating system can this be paired with?

Our Cyclone Separators are custom-designed for industrial heating systems up to 100 Lakh kcal/hr, with sizing based on gas flow rate, dust loading, and particle size distribution.

Why use a Cyclone Separator ahead of a Bag Filter or ESP?

Installing a Cyclone Separator as a pre-cleaner significantly reduces the particulate loading reaching a downstream Bag Filter or Electrostatic Precipitator, extending filter/electrode life, reducing maintenance frequency, and improving overall system efficiency.

How much maintenance does a Cyclone Separator require?

Very little — since Cyclone Separators have no filter media, electrical components, or moving internal parts, maintenance is largely limited to periodic inspection of the hopper, dust discharge system, and internal wear surfaces.

What operating temperatures can the cyclone handle?

Standard designs handle gas temperatures up to 250°C. Higher temperatures can be accommodated with customized refractory lining and material selection.

Does this help with CPCB/SPCB compliance?

Cyclone Separators alone typically achieve moderate collection efficiency and are often combined with a Bag Filter, ESP, or Wet Scrubber to meet CPCB/SPCB particulate emission limits — GyanTosh can advise on the right combination for your compliance requirements.

What is the typical installation timeline?

Cyclone Separators are among the faster APC systems to install, typically 4–6 weeks after delivery depending on ducting and site readiness.

Can GyanTosh handle the complete turnkey installation?

Yes. GyanTosh provides complete turnkey solutions covering engineering, supply, civil coordination, installation, commissioning, operator training, and post-handover support — single-point accountability from start to handover.
