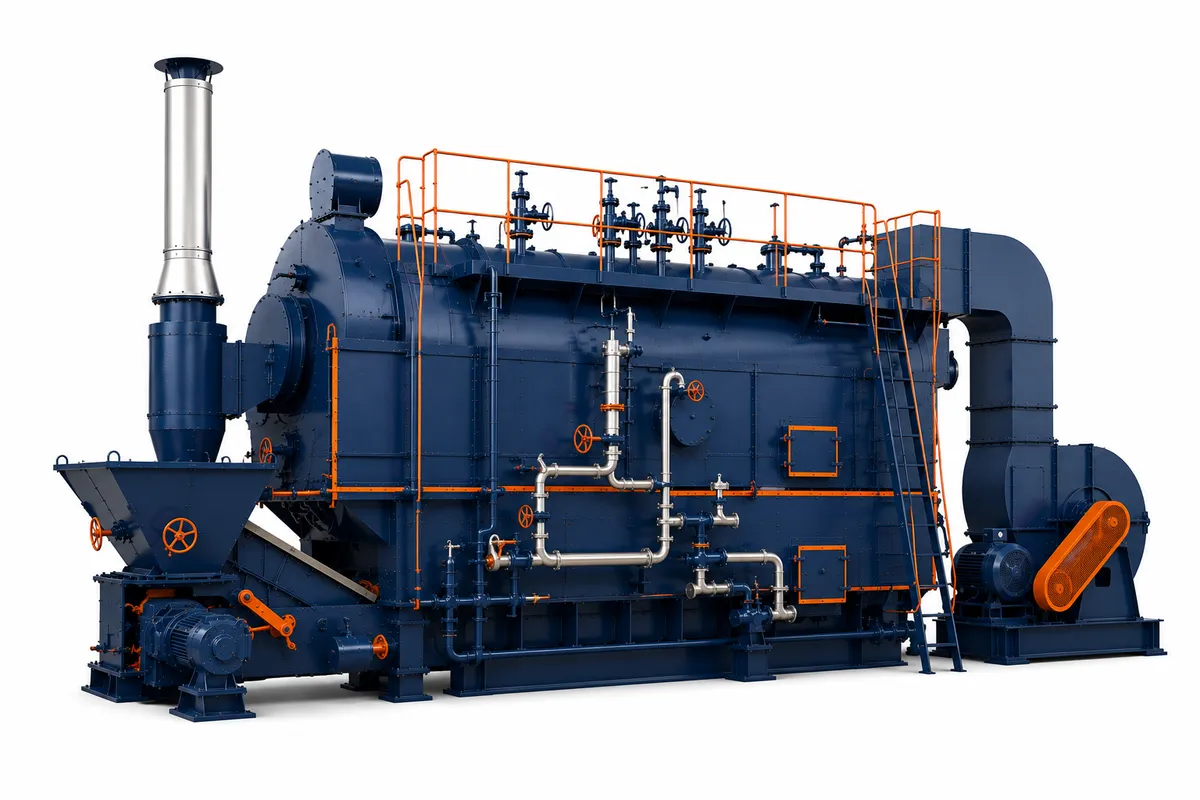

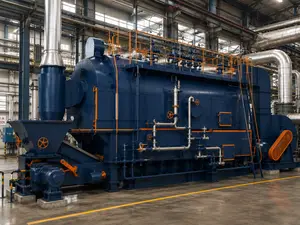

Travelling Grate Boiler
We engineer and supply Travelling Grate Boiler as part of complete industrial heating and utility solutions. Share your capacity, fuel type, application, and site details — our team will recommend a suitable configuration and quote.
About Travelling Grate Boiler
Gyantosh's Travelling Grate Boilers are biomass-fired steam boilers built around a continuous moving grate — an endless chain of grate bars that carries fuel steadily from the feed end, through the combustion zone, to controlled ash discharge at the far end. It is one of the most proven and sustainable technologies for firing biomass, typically delivering thermal efficiency 3–4% higher than comparable grate systems.
Fuel is spread evenly across the grate and burns progressively as it travels, giving consistent bed depth, stable combustion, and excellent burnout. The steady mechanical movement removes the need for manual stoking, keeps the fuel bed uniform, and enables reliable continuous operation at high capacities.
Every travelling grate boiler is designed and manufactured in compliance with IBR 1950 and IS 2825 using certified boiler-quality pressure parts, durable grate chains and bars, and robust refractory. Water-tube, single-drum, bi-drum, and hybrid configurations are offered to match required steam parameters and duty cycle.
Available in capacities up to 275 TPH and pressures up to 130 kg/cm², GyanTosh travelling grate boilers are ideal for captive power, sugar mills, paper mills, food, chemical, and textile plants running on biomass. Backed by over two decades of boiler engineering experience.
Travelling Grate Boiler Key Features
- Continuous travelling (chain) grate for steady, automatic fuel movement
- Thermal efficiency typically 3–4% higher than other grate boilers
- Uniform fuel bed and stable combustion at high capacity
- Capacities up to 275 TPH for large captive power and cogeneration
- Adjustable grate speed (0.5–2 m/min) to match fuel and load
- Even fuel spreading for excellent burnout and low unburnt carbon
- Dry ash handling with controlled discharge at grate end
- Water-tube / single-drum / bi-drum / hybrid configurations
- Designed for continuous 24×7 base-load operation
- Compliant with IBR 1950 and IS 2825 pressure vessel codes
- Compatible with economizer, air preheater, and modern APC equipment
- Low maintenance, proven, and sustainable biomass firing technology
Travelling Grate Boiler Specification
Fuels Used
Combustion Technology
An endless chain of grate bars carries fuel steadily through the furnace, ensuring uniform bed depth, stable combustion, and automatic ash discharge.
Fuel spreaders distribute biomass evenly across the grate width, giving consistent combustion and minimising unburnt carbon losses.
Grate speed (typically 0.5–2 m/min) is tuned to fuel type and boiler load, matching residence time to complete burnout requirements.
Under-grate air zones supply the right amount of air along the grate length to optimise drying, ignition, combustion, and burnout.
Freeboard secondary air completes combustion of volatiles above the bed, improving efficiency and reducing emissions.
Travelling Grate Boiler Applications
Industries Served
Advantages of a Travelling Grate Boiler
Travelling grate firing typically achieves 3–4% higher thermal efficiency than other grate technologies, reducing fuel cost over the plant life.
A carbon-neutral, renewable route to steam and power using bagasse, wood chips, and agricultural residues.
Configurations up to 275 TPH suit the largest captive power and cogeneration duties.
Continuous mechanical fuel movement removes manual stoking, keeps the bed uniform, and enables reliable 24×7 base-load operation.
Even fuel spreading, adjustable grate speed, and zoned air deliver excellent burnout and low unburnt carbon in ash.
A mature, well-understood technology with durable grate chains and straightforward maintenance for high availability.
Optional Accessories
Frequently Asked Questions(9)
How does a travelling grate boiler work?
Why is it considered highly efficient?
What fuels does it use?
How large can these boilers be?
How does it compare to a reciprocating grate?
Is IBR certification provided?
Can GyanTosh supply the complete boiler island?
What is the travelling grate boiler working principle?
What travelling grate boiler efficiency can be expected?
- Capacity / size requirements
- Process or application details
- Material preference (M.S / S.S where applicable)
- Installation location & delivery timeline
Share your capacity, fuel type, and application — we respond within 24 hours.
After it is installed
Equipment is the start of the relationship, not the end of it. We handle installation and commissioning, boiler AMC, retrofits, plant audits, spare parts and operator training — on equipment from any manufacturer, not only our own.
