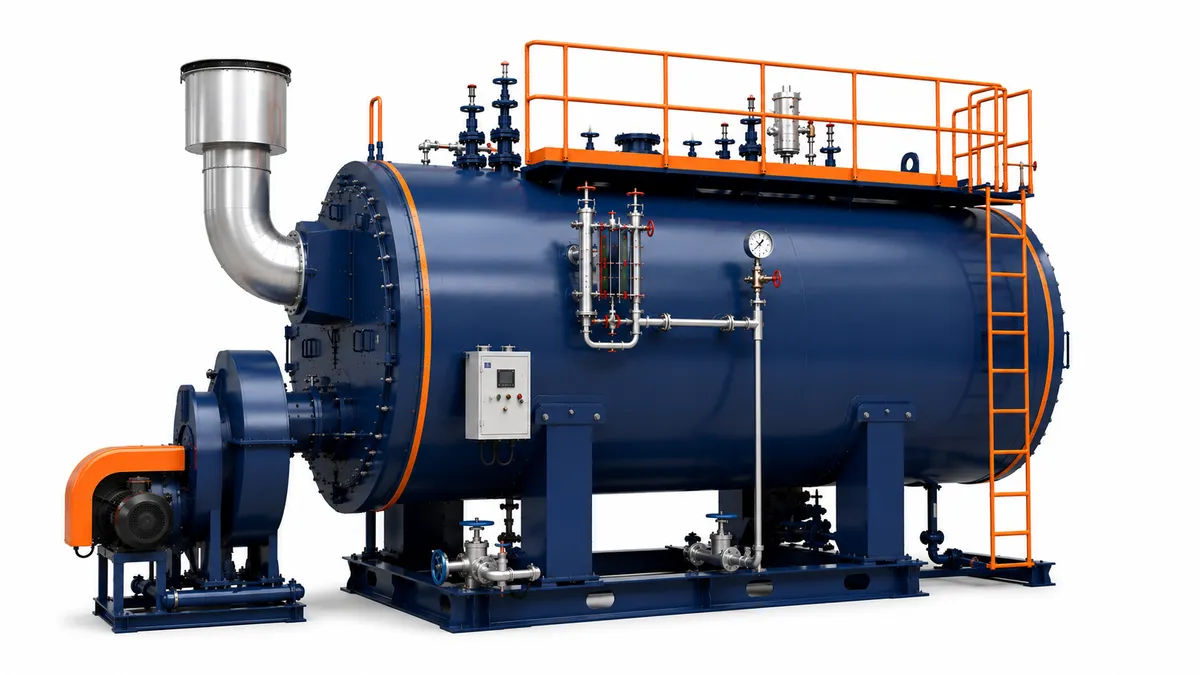

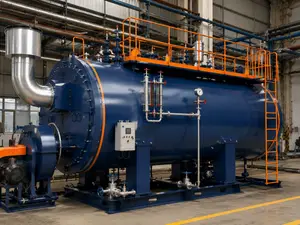

Water Cum Smoke Tube Boiler
We engineer and supply Water Cum Smoke Tube Boiler as part of complete industrial heating and utility solutions. Share your capacity, fuel type, application, and site details — our team will recommend a suitable configuration and quote.
About Water Cum Smoke Tube Boiler
Gyantosh's Water-Cum-Smoke Tube Boilers combine the best of both classic boiler designs — the rapid steaming and high steam parameters of a water-tube boiler with the large water-holding capacity and steam-storage stability of a smoke-tube (fire-tube) boiler. The result is a boiler that holds steam pressure and dryness remarkably steady even when process steam demand fluctuates sharply.
In this hybrid arrangement, radiant heat is first absorbed in a water-tube furnace section, and the hot flue gases then pass through smoke tubes surrounded by a large water reservoir. That large water volume acts as a thermal buffer — absorbing sudden load swings and consistently delivering steam of around 98% dryness, ideal for processes sensitive to wet steam.
Every water-cum-smoke tube boiler is designed and manufactured in compliance with IBR 1950 and IS 2825 using certified boiler-quality pressure parts. The three-pass horizontal design maximises heat recovery, while automatic operation ensures dependable, low-attention running.
Available up to 25 TPH (25,000 kg/hr) and working pressures up to 28 kg/cm², GyanTosh water-cum-smoke tube boilers suit textile, dairy, chemical, paper, food-processing, and pharmaceutical plants with variable steam loads. Backed by over two decades of boiler engineering experience.
Water Cum Smoke Tube Boiler Key Features
- Hybrid water-tube + smoke-tube design for stability and fast steaming
- Large water-holding capacity buffers sudden load fluctuations
- Consistently high steam dryness — around 98% dry saturated steam
- Three-pass horizontal construction for efficient heat recovery
- Steam capacity up to 25 TPH for medium process plants
- Stable steam pressure despite fluctuating process demand
- Automatic operation for dependable, low-attention running
- Suitable for a wide range of biomass and solid fuels
- Robust boiler-quality pressure parts for long service life
- Designed for continuous 24×7 industrial operation
- Compliant with IBR 1950 and IS 2825 pressure vessel codes
- Compatible with economizer, air preheater, and APC equipment
Water Cum Smoke Tube Boiler Specification
Fuels Used
Combustion & Heat Transfer
A water-tube furnace section absorbs intense radiant heat for rapid steaming and higher heat flux, giving the boiler its fast-response character.
Hot flue gases then travel through smoke tubes surrounded by a large water reservoir, recovering convective heat across multiple passes.
The generous water volume acts as a thermal buffer — storing energy and holding steam pressure and dryness steady during sudden load swings.
A three-pass horizontal layout maximises flue-gas residence time and heat recovery for high thermal efficiency.
Water Cum Smoke Tube Boiler Applications
Industries Served
Advantages of a Water Cum Smoke Tube Boiler
The large water reservoir buffers sudden changes in steam demand, holding pressure steady — a decisive advantage for batch and fluctuating-load processes.
Around 98% steam dryness protects downstream process equipment and improves heat transfer where dry steam is essential.
Combines the fast steaming and higher parameters of water-tube boilers with the storage stability and simplicity of smoke-tube boilers.
The three-pass gas path maximises heat extraction from flue gases, improving fuel economy.
Runs on a range of biomass and solid fuels, letting plants choose the most economical local fuel.
Robust boiler-quality construction and proven design deliver long service life and high availability under continuous operation.
Optional Accessories
Frequently Asked Questions(10)
What is a water-cum-smoke tube boiler?
Why is it good for fluctuating steam loads?
How dry is the steam?
What capacity and pressure are available?
What fuels can it burn?
Is IBR certification provided?
Which industries use this boiler?
Can GyanTosh handle turnkey installation?
What is the difference between a smoke tube and water tube boiler?
What does a smoke tube boiler diagram show?
- Capacity / size requirements
- Process or application details
- Material preference (M.S / S.S where applicable)
- Installation location & delivery timeline
Share your capacity, fuel type, and application — we respond within 24 hours.
After it is installed
Equipment is the start of the relationship, not the end of it. We handle installation and commissioning, boiler AMC, retrofits, plant audits, spare parts and operator training — on equipment from any manufacturer, not only our own.
